Geo-Environmental Engineering – Ash Dyke, Ash Pond, Slurry Pond, Reservoir & Landfill Consultants

Service 01

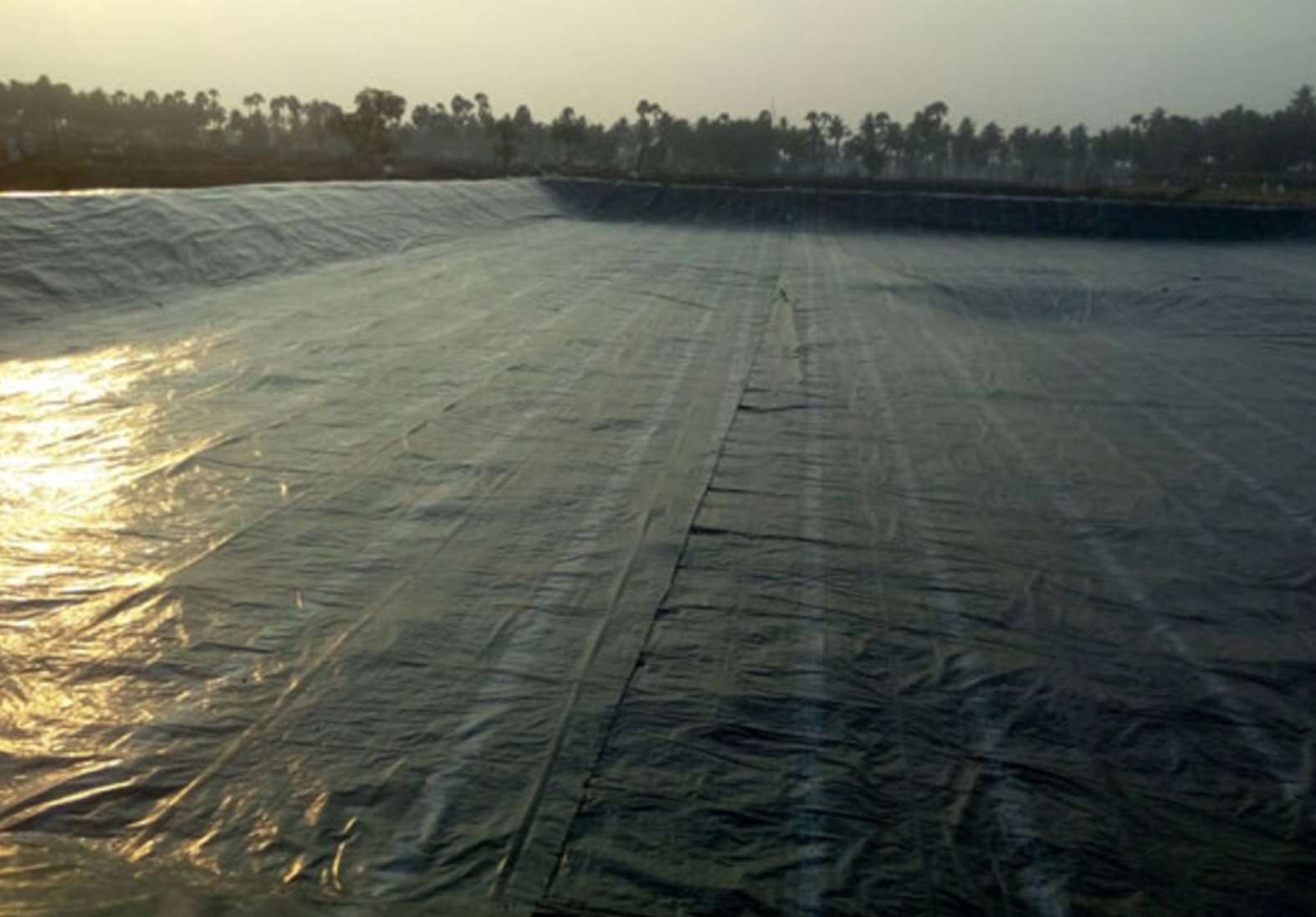

Landfill Design and Engineering

Geotech Design Consultants provides comprehensive landfill design and engineering consultancy services for municipal solid waste landfills, industrial waste landfills and other engineered waste containment facilities, subject to applicable regulations and waste acceptance criteria.

Our landfill engineering solutions focus on environmental containment, leachate management, slope stability, groundwater protection and long-term landfill performance.

Landfill Engineering Services

Landfill site selection and feasibility studies
Geotechnical investigation and subsurface characterization
Landfill layout planning and engineering design
Landfill base liner system design
Geomembrane and geosynthetic clay liner (GCL) systems
Leachate collection and drainage system design
Landfill slope stability analysis
Landfill capping and final cover system design
Surface water and stormwater management
Landfill gas collection and venting system planning
Settlement analysis and deformation assessment
Construction quality assurance and supervision
Landfill monitoring and closure planning

Landfill Design Approach

Our landfill design approach incorporates site-specific geological and hydrogeological conditions, waste characteristics, groundwater protection requirements and regulatory standards. We focus on engineered liner systems, effective leachate collection, slope stability and appropriate drainage to help minimize environmental risks.

Geotech Design Consultants supports clients throughout the landfill project lifecycle, from feasibility studies and conceptual design to detailed engineering, construction supervision and closure planning.

Service 02

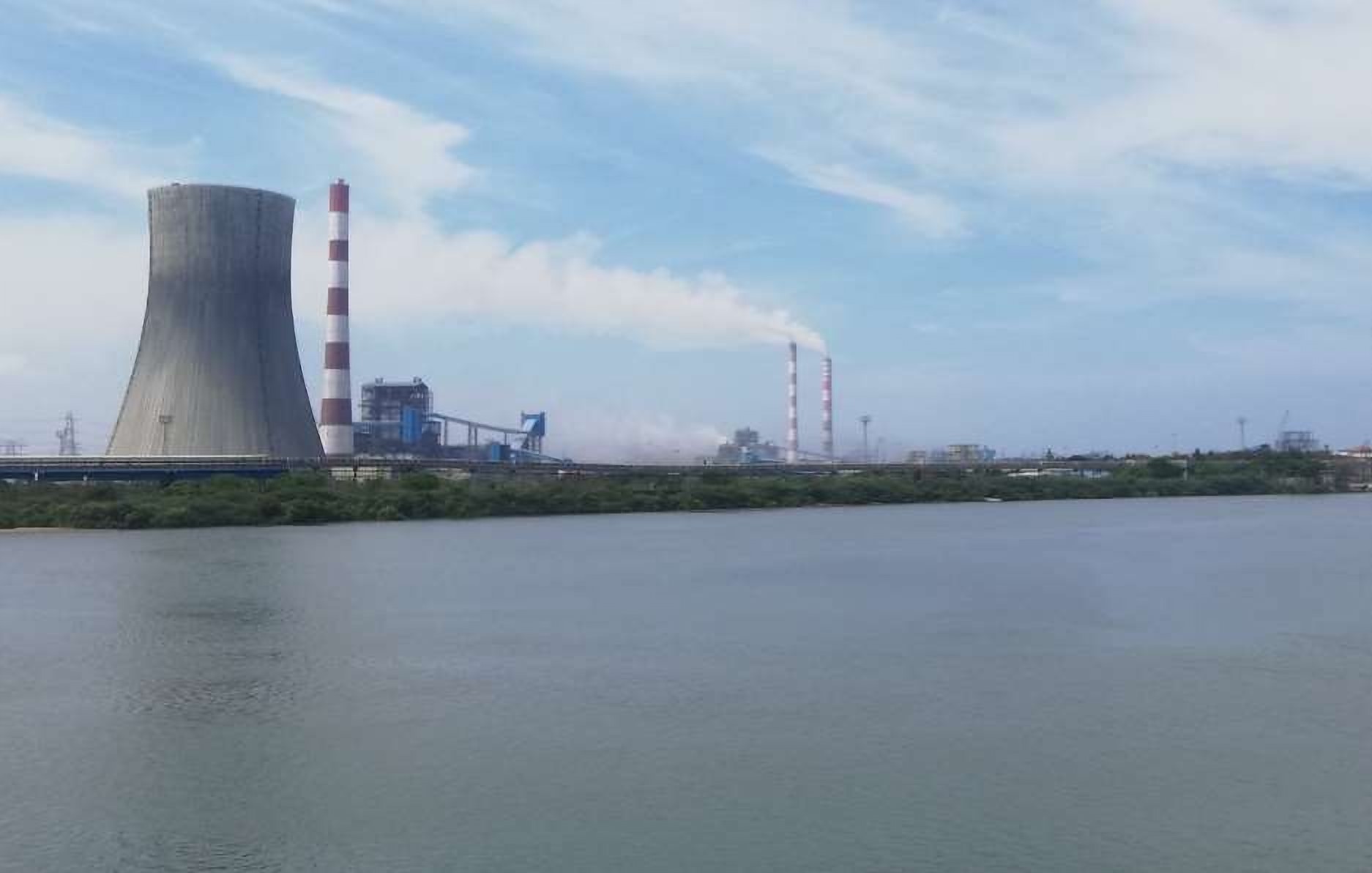

Ash Pond Design and Engineering

Geotech Design Consultants offers specialized ash pond design and engineering services for thermal power plants and industrial facilities that generate fly ash, bottom ash and other combustion residues.

Ash pond engineering requires careful consideration of embankment stability, seepage control, groundwater protection, water management and the long-term behavior of stored ash. Our engineering solutions are developed to address these challenges through integrated geotechnical and geoenvironmental design.

Ash Pond Engineering Services

Ash pond site investigation and feasibility assessment
Ash pond layout and embankment design
Geotechnical characterization of foundation soils
Ash dyke and embankment stability analysis
Seepage analysis and seepage control design
Ash pond liner system design, where required
Internal drainage and filter system design
Surface water management and diversion systems
Liquefaction and seismic stability assessment, where applicable
Settlement and deformation analysis
Raising and strengthening of existing ash dykes
Ash pond rehabilitation and remediation planning
Instrumentation and performance monitoring
Construction supervision and quality assurance

Ash Dyke Stability and Seepage Control

Ash dyke stability is an important aspect of ash pond engineering. Our design services include stability assessments under relevant loading and groundwater conditions, seepage evaluation, drainage design and the assessment of foundation performance.

We develop engineered solutions for new ash ponds, existing ash pond improvements, ash dyke strengthening and phased embankment raising, based on project-specific geotechnical conditions and applicable design requirements.

Our objective is to support the safe and sustainable development of ash pond facilities through sound engineering design and construction practices.

Service 03

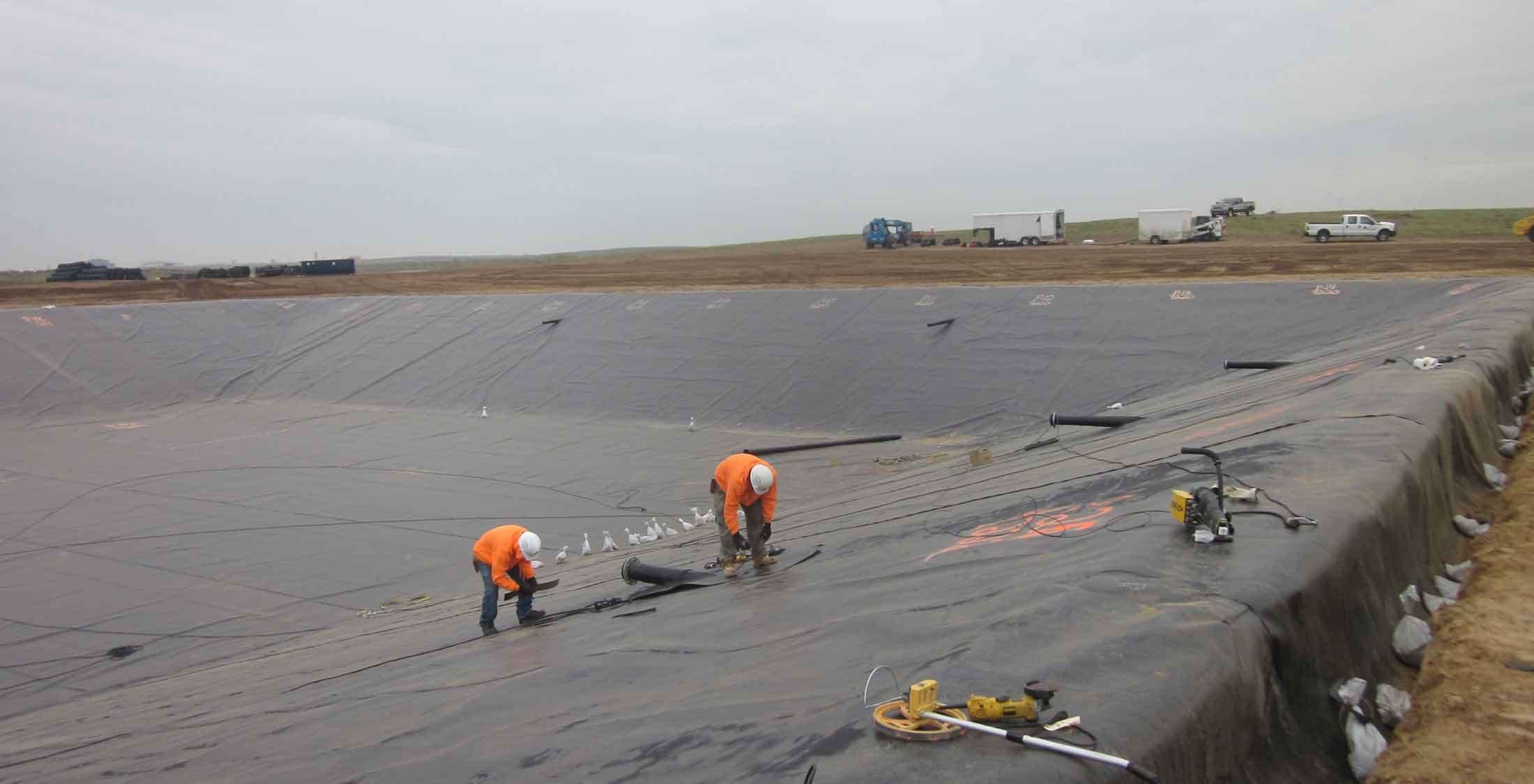

Reservoir Design and Engineering

Geotech Design Consultants provides reservoir design and geotechnical engineering consultancy services for water storage, industrial water management, irrigation, hydropower and infrastructure projects.

Reservoir engineering involves the assessment of foundation conditions, embankment stability, seepage control, erosion protection and water-retaining system performance. Our reservoir engineering solutions are tailored to project-specific topography, geology, hydrology and operational requirements.

Reservoir Engineering Services

Reservoir site investigation and feasibility studies
Geotechnical and geological assessment
Reservoir embankment and bund design
Earth dam and water-retaining embankment engineering
Slope stability and seismic stability analysis
Seepage analysis and seepage control measures
Geomembrane and geosynthetic liner design, where applicable
Internal drainage and filter design
Ground improvement and foundation treatment
Spillway and associated geotechnical interface assessment
Erosion protection and surface water management
Settlement and deformation analysis
Instrumentation and performance monitoring
Construction supervision and engineering support

Reservoir Seepage and Slope Stability

Effective seepage control and slope stability are critical considerations in reservoir engineering. We undertake seepage assessments, stability analysis and appropriate drainage and filter design to address potential seepage-related issues and embankment instability.

Our reservoir design consultancy supports the development of reliable water storage infrastructure, including new reservoirs, industrial water storage facilities and rehabilitation or improvement of existing embankments.

Service 04

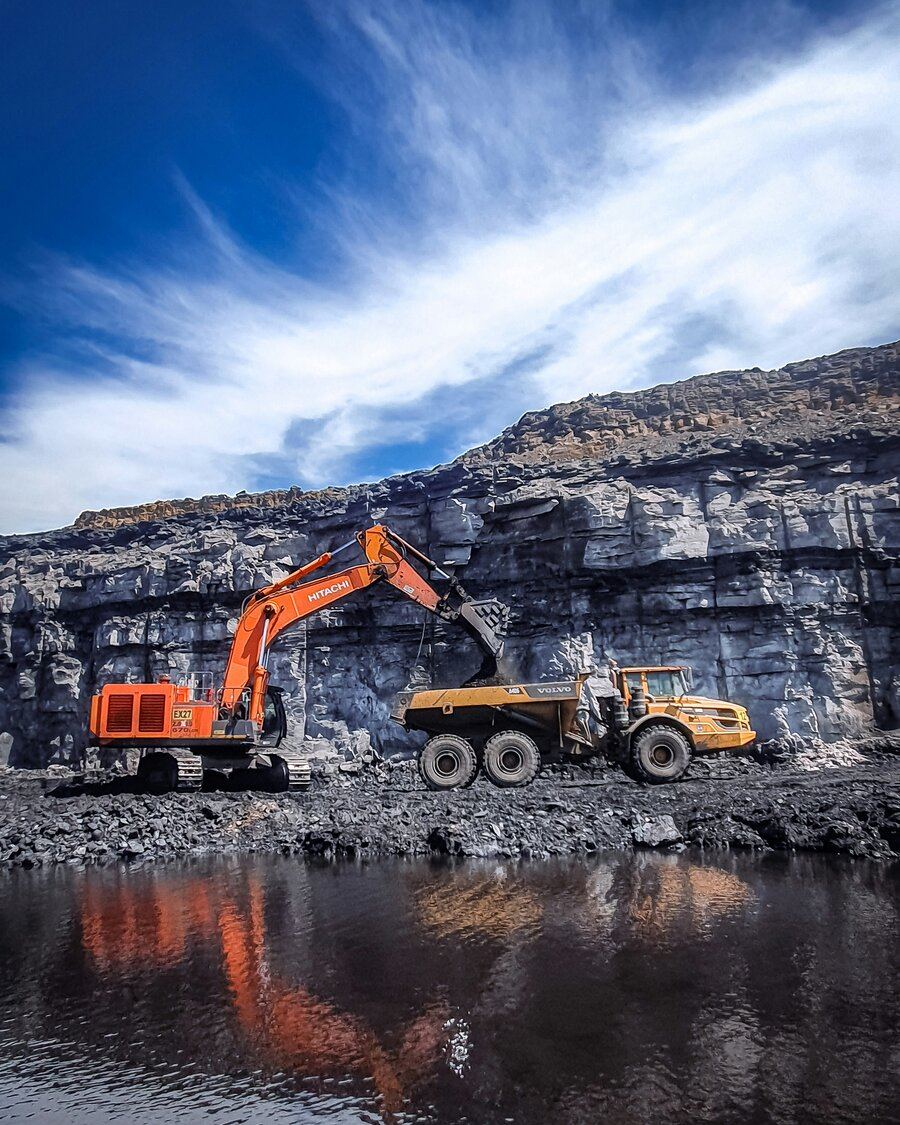

Tailings Pond Design and Engineering

Geotech Design Consultants provides tailings pond design and engineering services for mining and mineral processing industries. Our tailings storage engineering capabilities focus on the geotechnical design, stability assessment, seepage control and environmental containment of tailings storage facilities.

Tailings pond design requires a detailed understanding of tailings characteristics, foundation conditions, water management, embankment performance, seismic conditions and long-term closure requirements.

Tailings Pond Engineering Services

Tailings storage facility (TSF) site investigation
Tailings pond feasibility studies and site assessment
Tailings embankment and containment design
Tailings dam stability analysis
Geotechnical characterization of tailings and foundation soils
Seepage and groundwater flow analysis
Liner and seepage control system design, where applicable
Internal drainage and filter system design
Tailings embankment raising and strengthening
Static and seismic stability assessments
Consolidation and settlement analysis
Water recovery and stormwater management planning
Tailings deposition and embankment development planning
Instrumentation and geotechnical monitoring
Construction quality assurance and supervision
Closure and rehabilitation engineering

Tailings Storage Facility Stability and Safety

Tailings storage facilities require careful engineering assessment throughout their design, construction, operation and closure. Our tailings pond engineering services address embankment stability, seepage behavior, foundation performance, deformation and water management under relevant operating and loading conditions.

We provide engineering design and technical support for new tailings ponds, existing tailings storage facility upgrades, embankment raising and rehabilitation projects, with design approaches aligned with applicable regulations and recognized tailings management standards.

How we work

Study · Design · Deliver — one team, start to finish

Study

Feasibility study, site survey and geotechnical investigation.

Learn more 02

Design

Engineering design, calculations, drawings and reports.

Learn more 03

Project Execution

Execution support and supervision, with a link to GeoTech Buildcon for delivery.

Learn more 04

Project Management

Independent oversight of schedule, cost, quality and safety, from award through to handover.

Learn more 05

Annual Maintenance

Scheduled inspection, monitoring and upkeep that keeps the works performing safely.

Learn more

Frequently asked questions

Geo-environmental engineering FAQs

Straight answers on ash dykes, slurry and tailings ponds, reservoirs, liners and what you receive from us.

Still have a question? +91 8788 35 8788 info@geotechdesign.com

Geo-environmental engineering is the branch of geotechnical engineering that deals with storing or containing material that must not escape — ash, slurry, tailings, water or waste. In practice that means ash dyke and ash pond design, slurry pond and tailings pond design, raw water and process reservoirs, and engineered landfills, together with the liners, drainage, monitoring and closure works that go with them.

The ash pond is the storage area that holds the ash and the supernatant water; the ash dyke is the embankment that forms it. They are designed together: the pond fixes the storage volume and water level, and the ash dyke has to be stable against that level for every stage of raising, through the monsoon and under seismic loading.

Storage follows from ash generation, the fly ash and bottom ash split, the mode of disposal and the in-pond dry density achieved — not from area alone. We build a capacity–elevation curve for the site and then fix the number of raising stages so that each stage buys a sensible number of years of storage. Too few stages lock up capital and land early; too many spend the saving on repeated mobilisation and interim drainage.

Upstream raising is the cheapest in fill and land but places the new dyke over deposited ash, so it is only acceptable where that ash is drained, strong enough and not liquefiable. Downstream raising is the safest and takes the most land and fill. Centreline raising is the compromise. The choice is made from piezocone and strength testing through the deposited ash and from the seismic zone — not from cost alone.

It depends on the ground, the groundwater and the regulator. Where the sub-soil is permeable or the water table is shallow and in use, a lining system — compacted clay, amended soil or a geomembrane — is required, and the SPCB usually sets the standard as a condition of consent. Where natural low-permeability strata exist and can be proved by field permeability testing, lining requirements can be reduced. The investigation, not an assumption, settles it.

Boreholes with SPT and undisturbed sampling along the dyke alignment and over the pond area, CPT or piezocone where soft strata are suspected, geophysics to bracket rock level, trial pits and testing in every borrow area, field permeability and density, piezometers for the groundwater regime, and a full laboratory suite for classification, compaction, shear strength, consolidation, permeability and chemistry. Raising an existing pond adds profiling and sampling through the deposited ash itself.

Often yes, and it is one of the more useful savings available, because pond ash is on site and free. It has to be proved first: grading, specific gravity, compaction characteristics, shear strength, permeability and liquefaction potential, and usually a soil or clay cover on the outer slope for erosion and dust control. Ash fill also needs tighter moisture control during placement than soil does.

Pond ash is a low-plasticity, silt-sized, low-specific-gravity material and loose saturated ash can liquefy, which is why raising over saturated deposited ash is treated carefully. Seismic stability is normally checked by pseudo-static analysis using the seismic coefficient for the zone from IS 1893 (Part 1), supported by a liquefaction susceptibility assessment from the in-situ testing, and for high or high-consequence dykes by deformation analysis.

Typically around 1.5 for long-term steady seepage, about 1.3 for end of construction and rapid drawdown, and of the order of 1.0 to 1.2 under pseudo-static seismic loading, following IS 7894 and CEA / CBIP practice for ash dykes and IS 12169 for small embankments. The governing case is stated in the design basis report, and the values are agreed with the owner before the analysis is run.

By keeping the phreatic line inside the downstream shell and giving the water a designed way out. That is usually a chimney drain, a horizontal blanket drain to a toe drain and outfall, filter media graded against the surrounding soil to prevent piping, and a rockfill toe where needed. Seepage is modelled numerically, the exit gradient is checked, and a V-notch weir is provided so that the quantity can be measured for the life of the facility.

A prepared subgrade, a compacted clay layer at a permeability not exceeding 1×10⁻⁷ cm/s, a textured HDPE geomembrane, a protective geotextile, a graded drainage blanket and perforated HDPE collection pipes running to sumps, with base grades of at least two per cent, anchor trenches at the crest and interface friction checked on the side slopes. A final cap with gas venting closes the cell.

The principles are the same but the material is not. Tailings and process slurries can be denser, more acidic or alkaline, chemically aggressive and slower to drain, so liner compatibility, water balance, decant capacity and the rate of rise matter more, and the dam is usually treated as a higher-consequence structure with tighter instrumentation and formal surveillance.

Both. Construction support covers compaction trials, field density and gradation control, drain and filter acceptance, liner CQA including weld and destructive testing, piezometer monitoring against design assumptions, and as-built records. Under a PMC scope we additionally run tendering, measurement and bill certification, schedule and cost control, safety audit and the compliance file.

At minimum piezometers along and across the dyke to prove the phreatic line, settlement markers on crest and berms, V-notch weirs at drain outfalls to measure seepage, and staff gauges for pond level and freeboard. Inclinometers are added where lateral movement is a concern, and monitoring wells around the facility where groundwater quality has to be demonstrated. Readings are only useful if someone interprets them against the design — that is part of the AMC.

Instrumentation is normally read monthly and more frequently while raising is in progress or during heavy rainfall. A full inspection is carried out before and after every monsoon, with a written safety review report annually. Any change in seepage quantity or clarity, any new crack, bulge or boil, and any loss of freeboard is treated as a reason to inspect immediately rather than waiting for the next cycle.

Yes, and it is a large part of what we do — raising a dyke built by others, investigating distress, reviewing an existing design, or restoring records that were never kept. We begin with a document and instrumentation review and a site inspection, then a targeted investigation to establish what is actually there before proposing anything.

Consent to establish and to operate from the State Pollution Control Board, environmental clearance where applicable under the EIA notification, compliance with the MoEFCC fly ash notification for ash utilisation and disposal, CEA and CBIP practice for ash dykes at thermal stations, the Solid Waste Management Rules and CPCB siting criteria for landfills, plus forest, CRZ, groundwater and airport clearances where the site attracts them. Our design basis report is written to be submitted, not rewritten.

A feasibility study and site survey is usually a few weeks; geotechnical investigation depends on the number of boreholes and laboratory turnaround; design and drawings follow the investigation. On a typical staged ash dyke or landfill package the sequence runs to a few months from award to good-for-construction drawings. Fees depend on facility size, number of stages and scope — send the site details and the storage requirement and you will get a fixed scope and a fixed fee, not a rate card.

Yes. Closure design covers final grading and stability of the completed profile, capping with the required barrier and drainage layers, surface water management, gas venting where relevant, dust control and vegetation, long-term monitoring of groundwater and settlement, and a post-closure maintenance plan. Where the land is to be reused, the end-use loading is designed for from the start.
